1 Jan. 2003
Truck, Bus and Car computer controlled roller brake tester /2
(details, options, prices)
The dual speed /2 Computer controlled brake tester includes;
- Console
- RS 232 exits - parallel centronics
- PC based system for data processing
- System for module connection
- Totally Automatic operating
- Quick and exact result display
- Keyboard for introduction of vehicle data
- Monitor head with swivel support
- Large Monitor
- DIN A4 colour printer
- Possible to connect suspension tester
- Possible to connect side slip tester
Full price:
(excludes freight and installation)
|

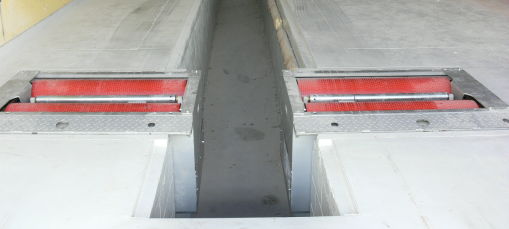

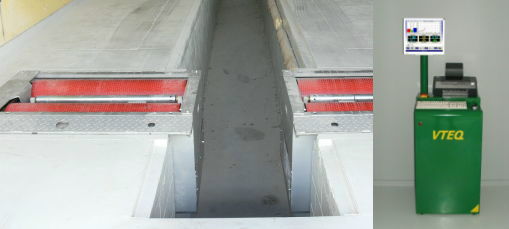

Digital truck, Bus and Car brake tester installed in pit situation ().
All testers are powder coated and come in a
selection of different colours.
|
TECHNICAL DATA:
Roller frame:
- Dimension: 2x 1140x1427x650 mm
- Max. axle load: 18000 kg
- Roller diameter: 265 mm
- Roller axle separation: 475 mm
- Test speed: 3 and 6 km/h
- Motor power: 2x11.0/11.0kW
- Roller friction: Dry > 0,8 Wet > 0,6
- Measurement range: 0-40 kN
Pit and floor plans brake tester
|
Truck, Bus and Car brake tester can test light vehicles at the click of a button.
|
Back to top
Console:
- Display unit: Colour Large Monitor
- Printer: Colour DIN A4
- Control System: PC Based
- User interface: PC keyboard
- Power supply: 230V, 50-60 Hz, 3 phases
- Data transfer: RS 232
Pit and floor plans brake tester
|
Cabinet with PC, Large monitor and electronics.
|
Back to top
OPTIONS
|
Model
|
Description
|
Unit Price (NZ $ excluding GST and freight)
|
|
BRAK 6080
|
|
|
|
BRAK 6090
|
|
|
|
BRAK 6120
|
|
|
|
BRAK 6130
|
|
|
|
VTEQ 7010
|
|
|
|
BRAK 7020
|
|
|
|
BRAK 7040
|
|
|
|
BRAK 7060
|
|
|
|
BRAK 6040
|
|
|
|
BRAK 6041
|
|
|
|
BRAK 7100
|
|
|
|
BRAK 7150
|
|
|
|
VTEQ 3020
|
|
|
|
VTEQ 3150
|
|
|
|
VTEQ 3005
|
|
|
|
BRAK 7210
|
|
|
|
BRAK 7112
|
|
|
Various colour options avalible at no extra charge when painted in factory
These prices are subject of change without any prior notice.
Prices exclude GST and freight
