The WoF testlane is approved by the LTSA for WoF testing.
The testlane has a 12 KN (per wheel) brake force measuring capability and a test bed width of 2800 mm. The maximum axle load on the brake tester is 6000 Kg's!
Part of the software is developed here in NZ by AECS , giving flexibility with modifications required in for example the 'in P.C.' WoF check sheet.

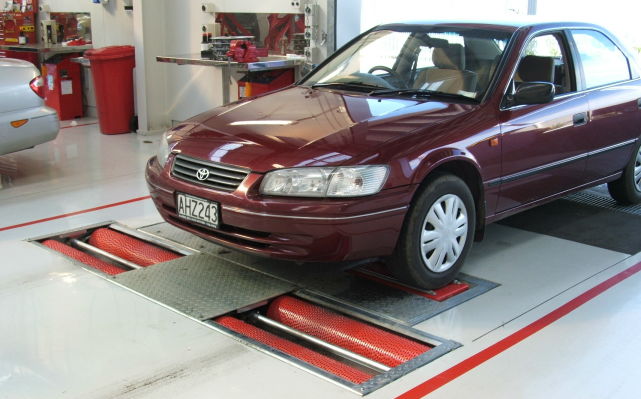

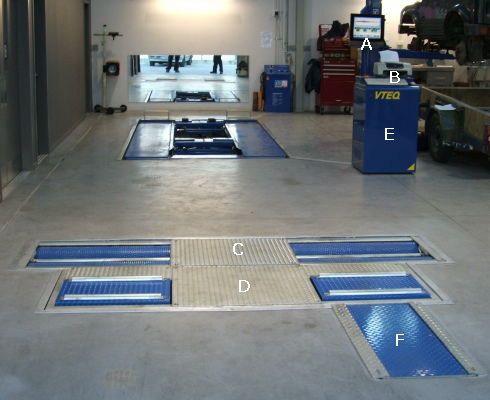

The full computer controlled test lane includes;
- 2 x 12 KN Roller Brake Tester (C)
- Eusama Suspension Tester (D)
- Side Slip Tester (F)
- Cabinet with electronics (E)
- large Flat panel Monitor (A)
- Monitor head with swivel support (A)
- Keyboard for entering vehicle data (B) (also possible via network)
- A4 Colour Printer (B)
- PC based system for data processing, easy calibration and pass or fail limits modification.
- Modular system
- Totally automatic or manual operation
- Quick and exact result display
- Automatic Weighing Device
- 4x4 mode standard (!)
- Soft starter kit for the brake testers' 5,5 kW motors standard (!)
Full price:
(includes freight, installation and training of 5hrs)
Includes induction of the product and technical background training.
|
Testlane components ()
(Note: hoist not part of vteq testlane.).
All testers are powder coated and come in a
selection of different colours.
|
TECHNICAL DATA:
The following items can be purchased as stand alone items with or without cabinet to expand an existing set or to use as a stand alone tester (e.g. computerised suspension tester).
Prices and details available on request.
Console:
- Display unit: flat LCD large monitor
- Printer: Colour DIN A4
- Control System: PC Based
- User interface: PC keyboard
- Power supply: 230V, 50-60 Hz, 3 phases
- Data transfer: RS 232
Pit and floor plans full test lane
|
Cabinet with PC, Large monitor and electronics.
|
Back to top
Note:
Brake Tester:
- Dimension: 2920x680x280 mm
- Track width: 860-2800 mm
- Max. axle load: 6000 kg
- Roller diameter: 202 mm
- Roller axle separation: 400 mm
- Test speed: 3.9 km/h
- Motor power: 2x5.5 kW
- Roller friction: Dry > 0,8 Wet > 0,6
- Measurement range: 0-12 kN
- Power supply: 230/400, 50-60 Hz, 3 phases
Pit and floor plans brake tester
|

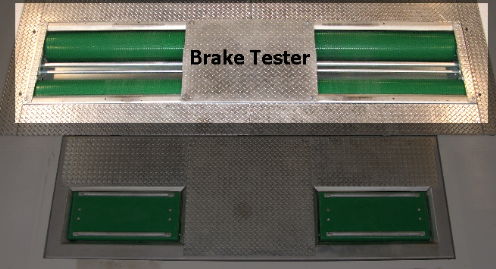

Roller brake tester (cars).
|
Back to top
Suspension Tester (EUSAMA):
- Dimension: 2320x800x280 mm
- Track width: 880-2200 mm
- Excitement stroke: 9 mm
- Excitement frequency: 25 Hz
- Wheel load: Max.1000 kg
- Max. axle weight: 2000 kg
- Power supply: 230/400, 50-60 Hz,
3 phases
- Motor power: 2x 3.0kW
Pit and floor plans suspension tester
|

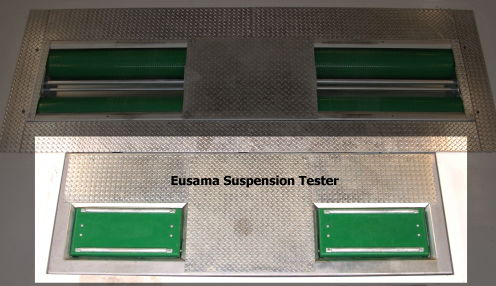

Suspension Tester (resonance type).
|
Back to top
Side Slip Tester:
- Dimensions: 1020x460x80 mm
- Measuring plate width: 400 mm
- Measuring range: -20 / +20 meter/km
- Max. axle load: 2500 kg
Pit and floor plans side slip tester.
|
Side Slip Tester.
|
