AECS Vehicle inspection Center Presentation
|
Roller brake tester
(details, options, prices)
|
|
Approved for WOF Testing
The VTEQ 2000 is a 6KN machine with a test width of 2200 mm.
The Analogue brake tester
includes;
- Console
- RS 232 exits - parallel centronics
- Totally automatic operating
- Analogue display
- Optional 4 WD
- Optional infrared remote control
- Optional B/W DIN A4 printer
Full price:
(includes freight, Installation and Product training of 2hrs)
All testers are powder coated and come in
a selection of different colours.
|
Analogue brake tester components ().
|
TECHNICAL DATA:
Brake Tester:
- Dimension: 2320x680x280 mm
- Track width: 780-2200 mm
- Max. axle load: 3500 kg
- Roller diameter: 202 mm
- Roller axle separation: 400 mm
- Test speed: 5 km/h
- Motor power: 2x5 kW
- Roller friction: Dry > 0,8 Wet > 0,6
- Measurement range: 0-6 kN
- Power supply: 230/400, 50-60 Hz, 3 phases
Pit and floor plans brake tester
|
Roller brake tester (cars).
|
Back to top
Console:
- Display unit: 2 x 350 mm analogue meter (0 - 6 KN)
- Electronic control: Micro Processor Based
- Data transfer: RS 232
- Imbalance indicator range: 0 - 70%
- Measurement error: < 3%
- Indication error: < 3%
- Power supply protection fuse: 4 Amp
Pit and floor plans
|

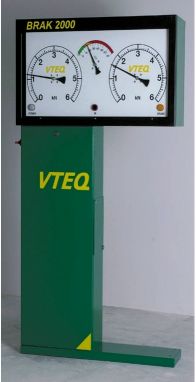

Analoge Cabinet with electronics.
|
Back to top
OPTIONS BRAK 2000
|
Model
|
Description
|
Unit Price (NZ $ excluding GST and freight)
|
|
BRAK 2010
|
|
|
|
BRAK 2110
|
|
|
|
BRAK 2050
|
|
|
|
VTEQ 3999
|
|
|
|
BRAK 2051
|
|
|
|
BRAK 2060
|
|
|
|
BRAK 3040
|
|
|
|
VTEQ 3161
|
|
|
|
VTEQ 3030
|
|
|
Various colour options avalible at no extra charge when painted in factory
These prices are subject of change without any prior notice.
Prices exclude GST and NZ local freight
