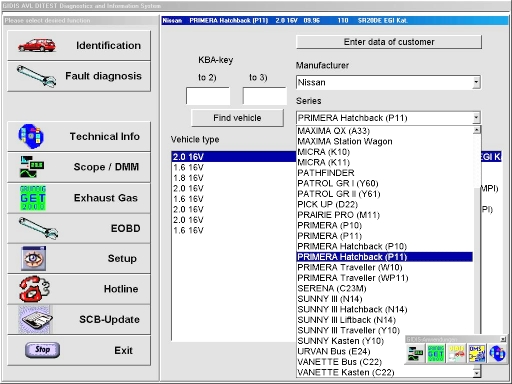

Screen dump of the Digis Software.

Short description:

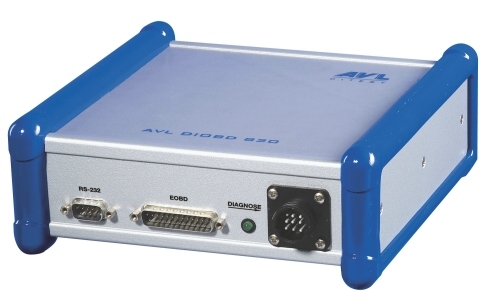

Serial communication with vehicles via the PC based Scan box AVL DIOBD 820.

• Vehicle range Alfa Romeo to Volkswagen. (click on the 'Vehicle range' button below for a download of the full range)
• Large range of system communication modules for example; Engine management, ABS, Airbag, Central locking, Auto. trans, Climate control, etc.
• Brand specific protocols (= tester vs ECU communication language).
• E-OBD protocols (ISO 9141-2, KWP 2000, SAE J1850, CAN).
  Note: E-OBD is NOT just one universal communication 'language'!!

Extensive testing and diagnostic functions like:

• Read / clear fault code memory
• Live data
• Basic setting / adaptions
• Actuator test
• Automatic identification of ECU
• Service interval reset
• ECU and Key Encoding

Software updates are available as subscription or as single purchase CD's.
Brand specific connectors and universal connectors are available.


Technical Data:

Interface:	PC and Vehicle, Firmware Upgrade via PC Interface (RS232)
Operating Voltage:	8...15V
Norm:	15031-4 (Scan-Tools)
Operating Temperature:	+5...+40°C
Dimensions
(W x H x L):	200 x 200 x76 mm
Weight:	1.1 kg

A hand held AVL serial communication tester is available from AECS, check out the AVL 8000!

Vehicle range

pdf download file (720 Kb). Version 10.xx (04/2004)
