BrainBee Automotive cleaning equipment

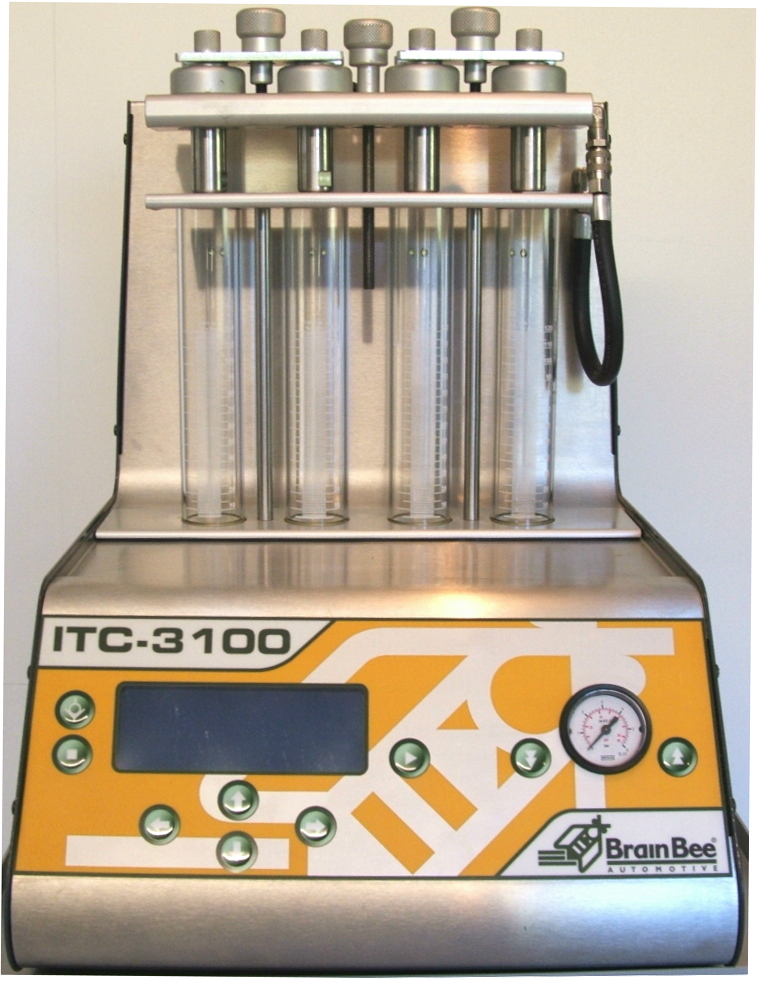

Petrol Injector test bench ITC 3100



Brainbee ITC 3100


The Brainbee product range is proudly supplied by AECS
Brainbee's latest product on sale in New Zealand is the ITC3100 - calibrating, testing and cleaning system for injectors.

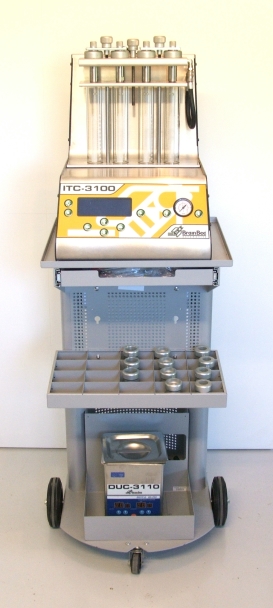

  Full set including some of the available adapters and trolley.

This injector test bench provides you with conclusive answers regarding your injector
  • balance,
  • spray pattern/quality (at an automatic variable pulse rate and pulse width),
  • to a certain extend their KW rating,
  • Leak rate,
  • Injector coil resistance balance.
The process is fully automatic and can be adjusted to suit each different application.

The rail pressure can also be electronically adjusted, to check if the spray pattern is correct within a certain bandwidth around the recommended injection pressure.

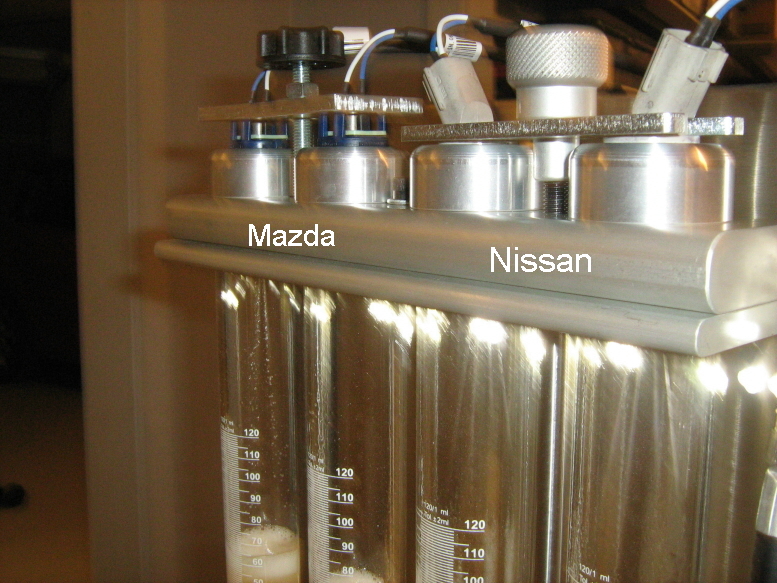

  Injectors fitted into two different type of side flow adapters, running on the test bench.

Adapters

We have various injector adapters available, please make your choice carefully as we do not have all adapters in stock at all times.

ITC adapters    Click on any item for enlarged picture.
Part number Description Price NZ Dollars

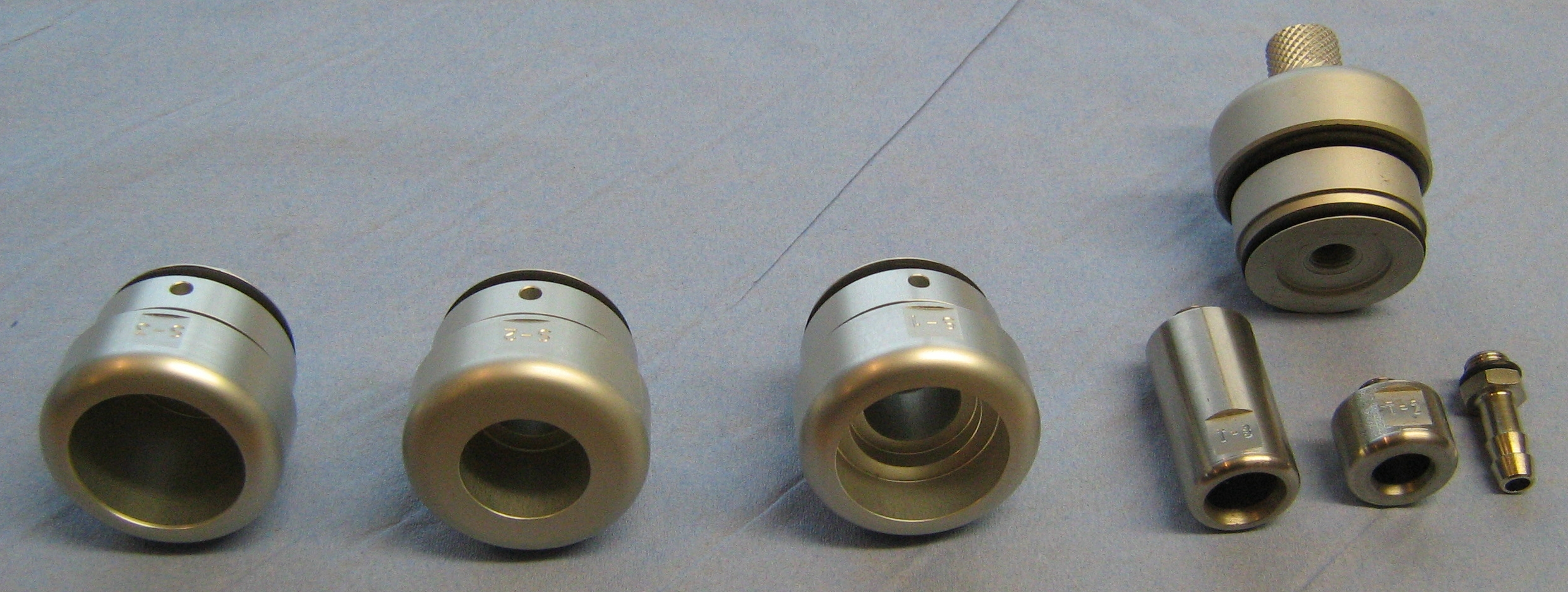

EVO kit
made in Italy		 Full set of various injector adapters, including top flow and side flow LPG/CNG injectors. Set of four adapters:
 product information

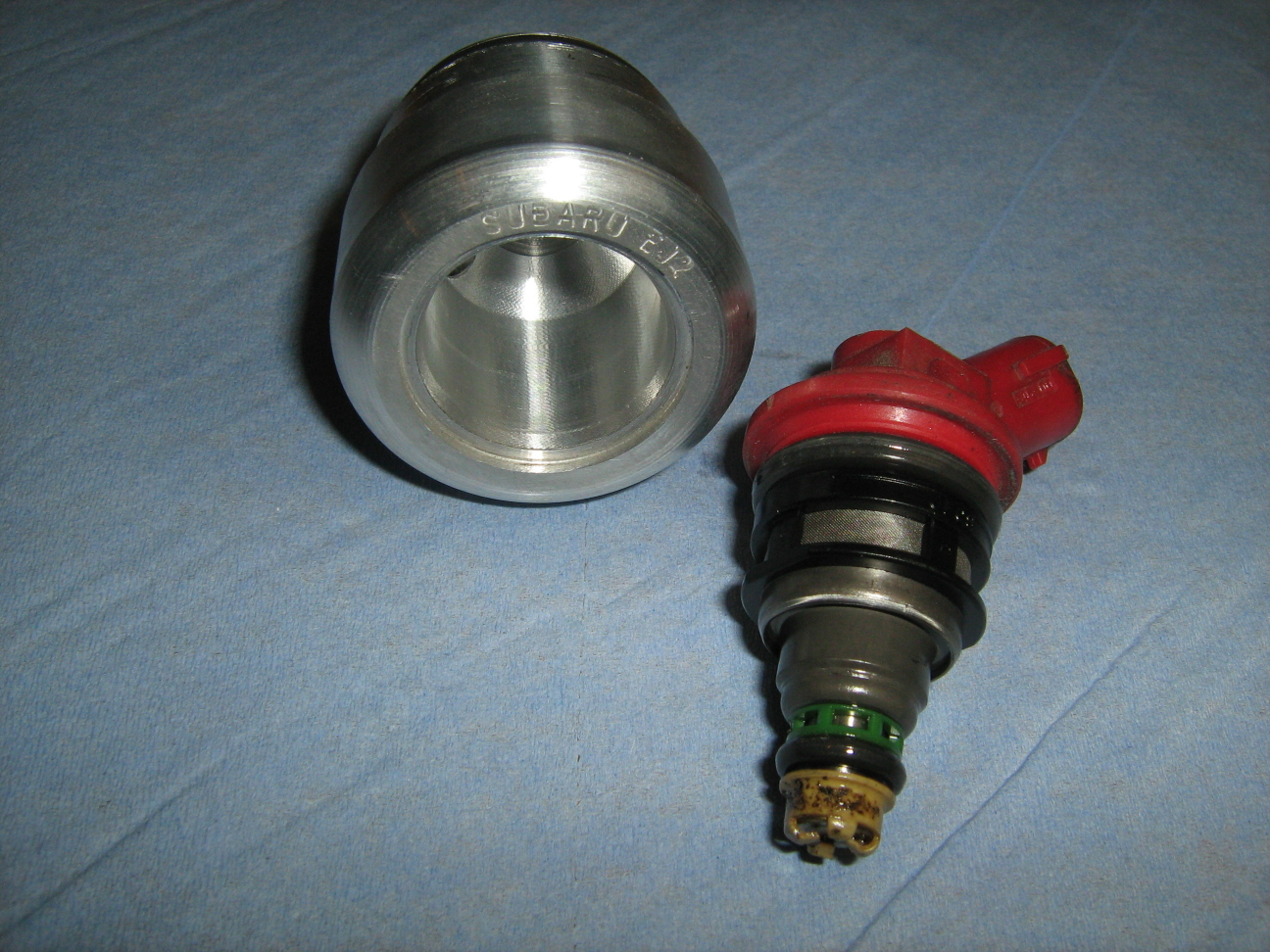

Subaru EJ 2 series
made in NZ		 Subaru side flow injector adapter, suitable for the 2.0 ltr, 1.8 ltr, etc. injectors. Set of four adapters:
 product information

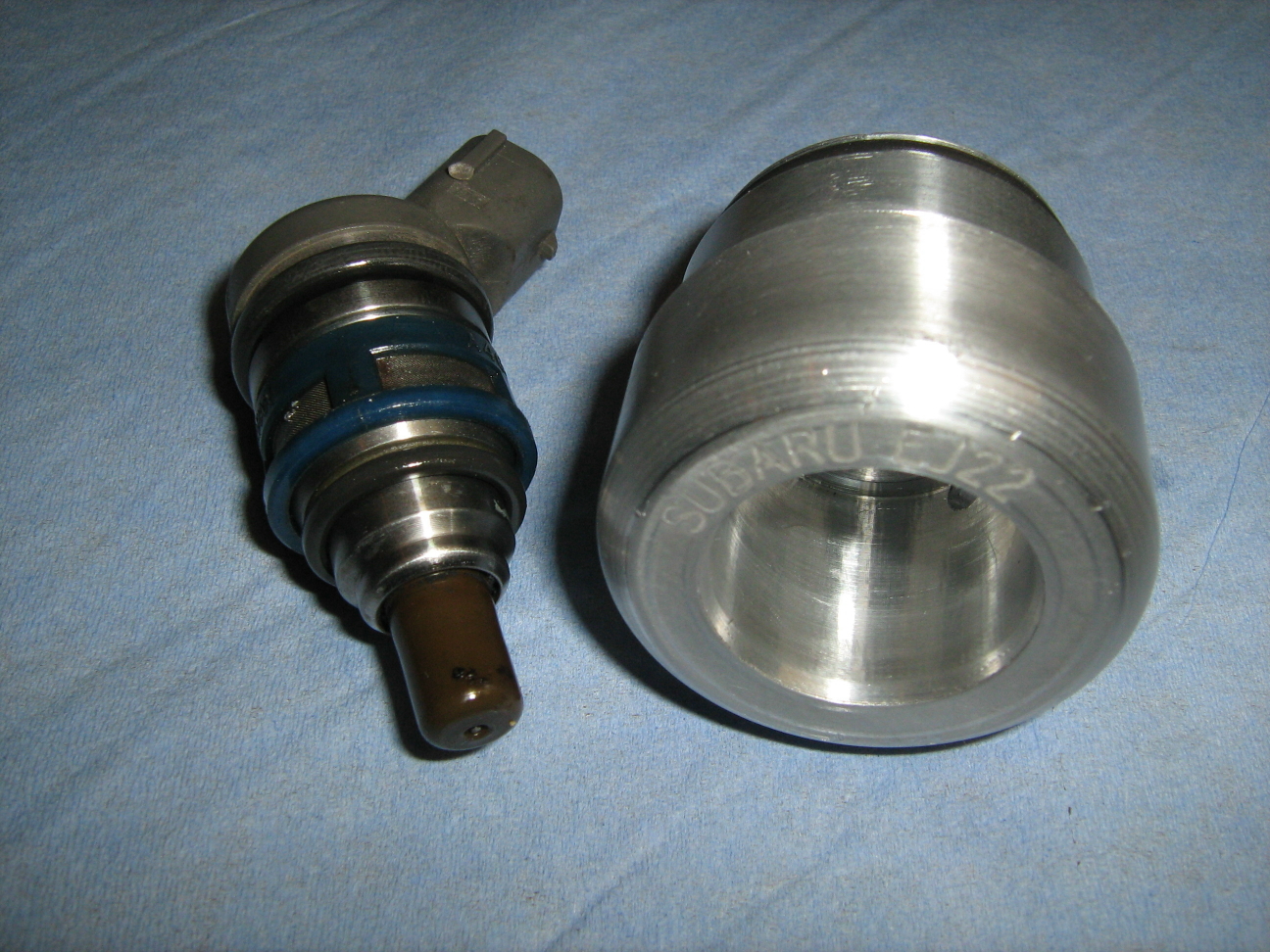

Subaru EJ 22 series
made in NZ		 Subaru side flow injector adapter, suitable for the 2.2 ltr, twin turbo, etc. injectors. Set of four adapters:
 product information

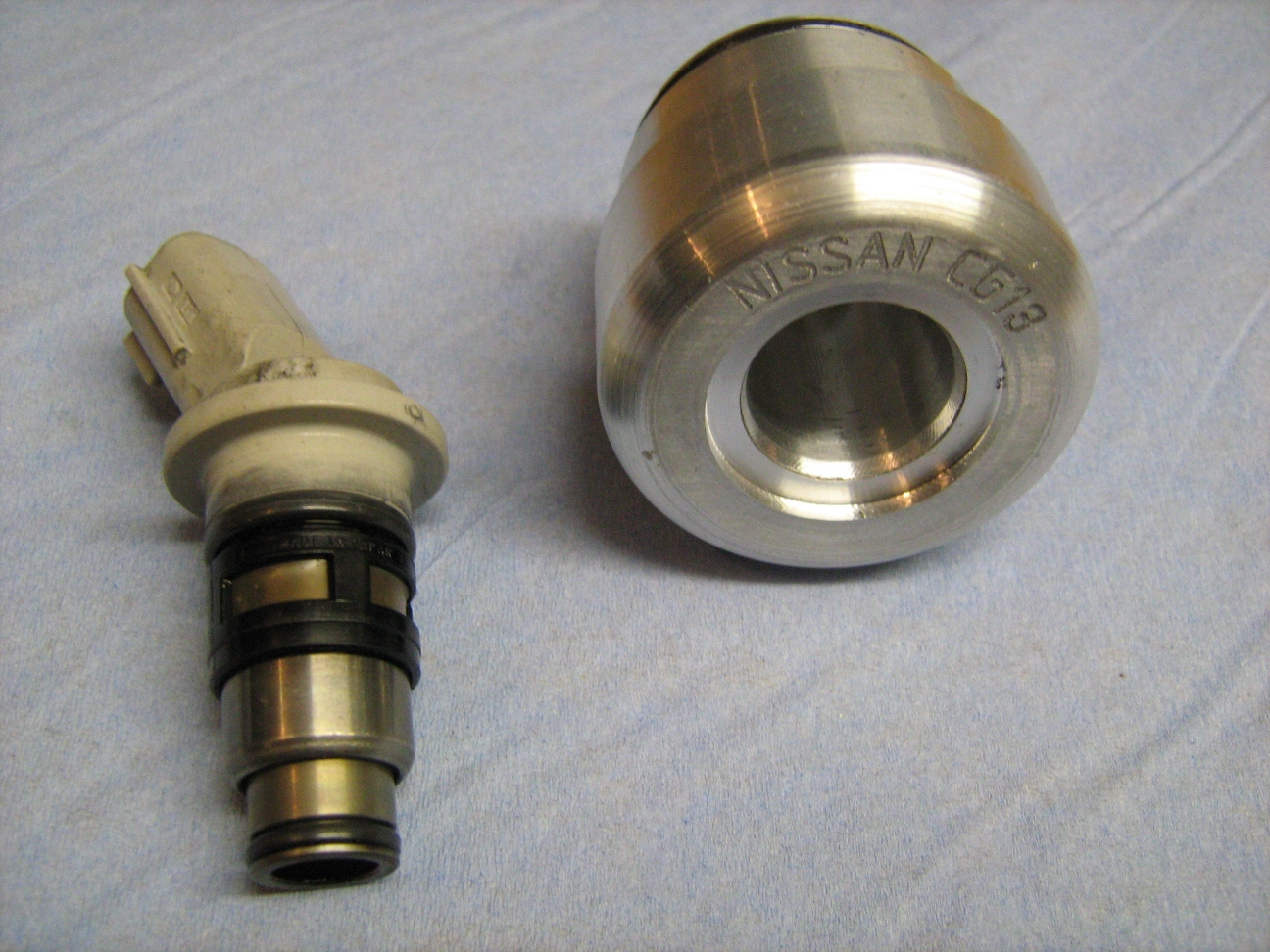

Nissan CG series
made in NZ		 Nissan side flow injector adapter, suitable for the 1.3 ltr, 1.5 ltr, etc. injectors. Set of four adapters:
 product information

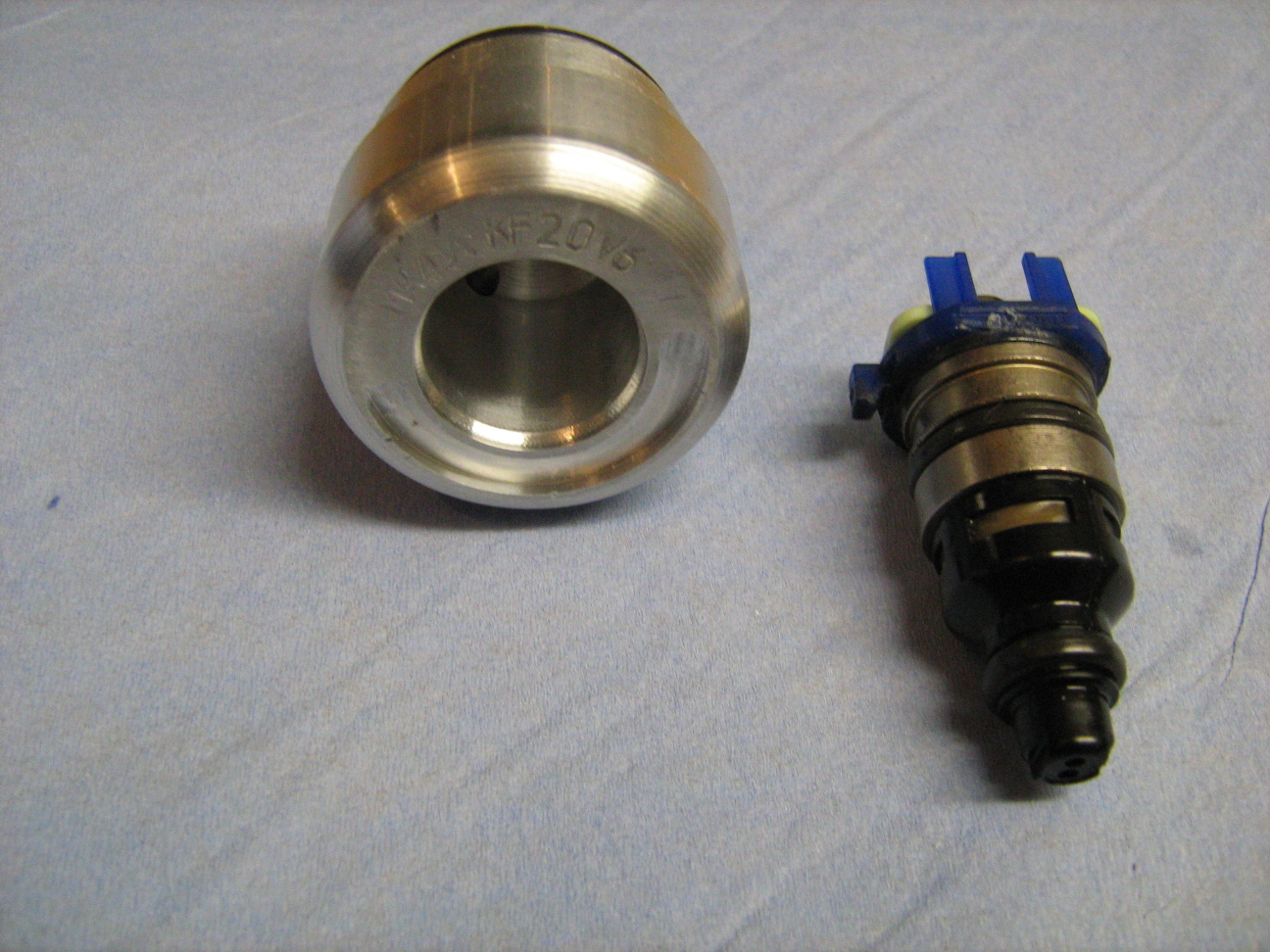

Mazda V6 series
made in NZ		 Mazda side flow injector adapter, suitable for the 2.0 ltr, 3.0 ltr, etc. injectors. Set of four adapters:
 product information


We can make adapters to suit. Please contact the team at AECS at +64 6 8749077

Maintenance

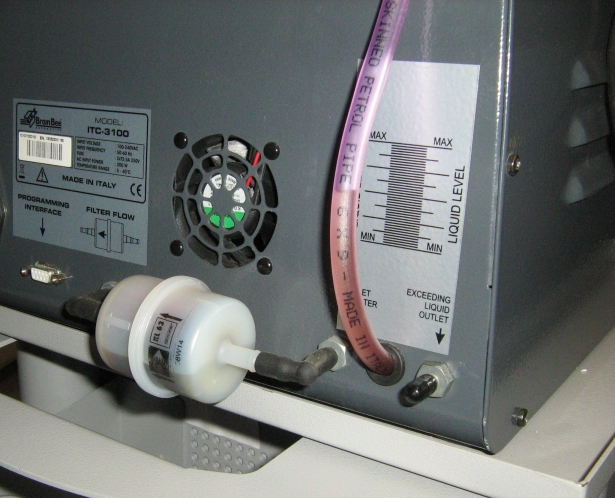

  Easy access to test fluid filter and drain.

There are very few maintenance jobs to be performed on the ITC. Occaisional filter replacement and fluid replacement are all performed without taking the unit apart. Even software updates for loading different test programs are possible without 'opening the unit up'.
