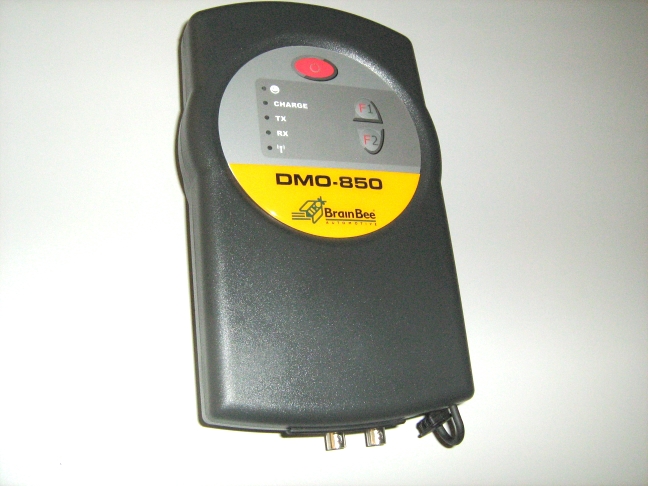

BrainBee
The BrainBee equipment range is represented in NZ by AECSEquipment.
This exiting new tool is both cost effective and VERY functional.
This PC/laptop based scope can record patterns prety much indefinetly (laptop hard drive depending) at top speed.
The signals can be recorded and stored for future reference and for e-mail (back up) purposes.
The scope is very easy to setup and functional patterns will be produced within minutes of first contact. For an average technician there should be no need to read time consuming and complex manuals.

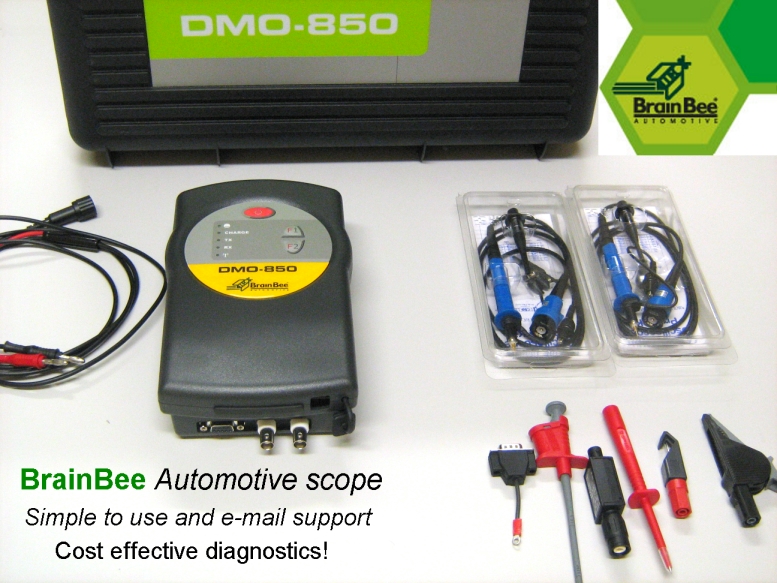

BrainBee Scope set, complete with cables, attenuators and probes
Data logging
It is also possible to record patterns on the scope internal memory whithout a PC or laptop connected. The customer can drive the vehicle without letting the laptop go out on the road. The internal memory can be replayed later when the vehicle gets back to the workshop on any PC/laptop.
The scope has its own internal battery for data logging purposes. The battery ensures a stable recording independent of vehicle battery or Laptop power supply. The battery should provide for around 8 hrs unitterupted use.

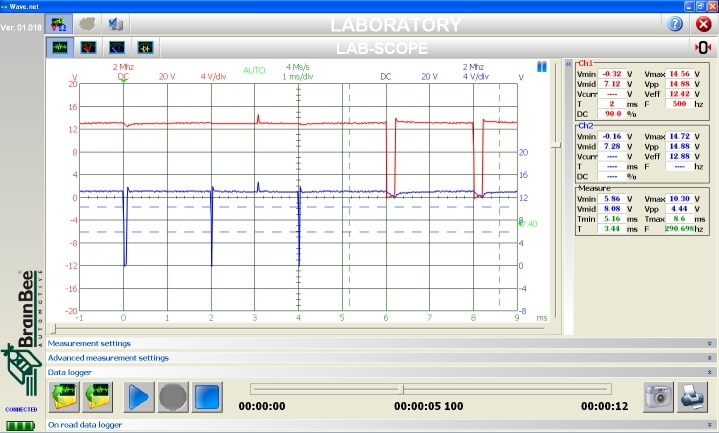

BrainBee screen shot of throttle control motor recording in playback mode.
Measurements
Measurements are easy to make with simple 'drag and drop' cursors.
The scope also has multimeter functions like Voltage measurements, Ohms measurement and Diode checking feature.
Technical specifications
TECHNICAL FEATURES
DMO-850 / D-SCOPE 2 with LAB-MODULE
Vertical Resolution: 12 Bits
Number of Channels: 2 channels with a “common ground” BNC connector
Input impedance: 1MOhm
Buffer memory: 512K
Memory Data Logger: internal microSD (256 MB min)
Sampling Frequency: 6MSPS
Analogical input passband: 0/3MHz
Voltage Precision DC: ±1%
Scale (Volt): from ±100mV to ±50V
Input overvoltage protection: ±100V
Time/Div.: from 1us to 50s
Trigger: internal programmable on Ch 1 or Ch 2 in Automatic, Normal or Single mode
Multimeter functions (DMM-CH1):
AUTORANGE DC/AC Voltmeter with a capacity of upto ±50V;
AUTORANGE Ohmeter with a capacity of upto 1MOhm;
diode test with a test voltage of 2VDCmax
PC Data Logger function to record Ch1 and Ch2 signals in the PC
Stand-alone Data Logger function for the measurement setup configuration of buttons F1 and F2
Communication interface: Optoisolated and/or BLUETOOTH® V2.0 USB (only for D-SCOPE 2)
Power supply:
2,2Ah Internal rechargeable Li-Ion battery with charge for >8 hours
External charger supplied
System Minimum requirements for WAVE.net
Windows® XP or higher
Processor: Celeron 1MHz or higher
Hard Disk: 100 MB free
Monitor: 16 bit colour depth; minimum resolution 800x600
Internet connection: recommended for automatic update
STANDARD SALE CONFIGURATION
DMO / D-SCOPE 2 central unit, with integrated Li-Ion battery pack
Measurement LAB-MODULE
Power supply 15VDC @18W for the battery charger
2 scope probes
Multimeter cable
Attenuator module 10:1
Accessories (crocodile clips and perforation rods)
Instructions manual
WAVE.net Installation CD
Case
Optionals:
DMO DataBank - Data bank with wave-shape samples and engine management wiring diagrams
Motor tester module 6 Ch to measure high voltage and analyse ignition systems
AC/DC Amperometric clamps CC-60 for measurements upto 60A CC-600 for measurements upto 600A
Pricing
Item
Description
Price
DMO 850
2 Channel scope, data logger, multimeter, with internal Li-Ion battery. USB version
D-scope 2
2 Channel scope, data logger, multimeter, with internal Li-Ion battery. Bluetooth version
DMO Data bank
Data base with pre recodered patterns, how to connect and wiring diagrams
Conversion to mobile
Custom build tool case with integrated power connection and front BNC connectors, to protect laptop and measurement leads (excluding laptop).
Laptop
Buy your own laptop and let us configure it or we can buy the laptop for you and load it to specifications.
(price is variable)
These prices are subject to change without any prior notice.
Prices EXCLUDE GST and freight
