BrainBee Automotive diagnostic equipment Mobile Diagnostic Emission tester

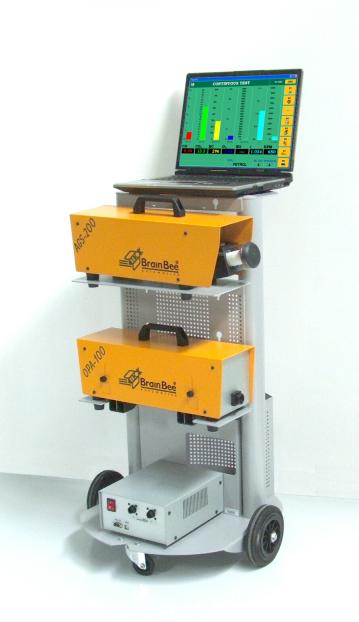

Brainbee emission tester set
BrainBee AGS 200 Petrol emission tester.
The BrainBee equipment range is represented in NZ by AECSEquipment.
The Brainbee emission testers are a high quality Italian product.
AGS 200 Petrol 4/5 gas measuring unit.
The Petrol emission tester is being used for objective legal emission tests (WoF) in many countries around the world. The tester is programmable and can there for be adapted to changing government legislation. The test protocol is a living document and has seen many changes throughout history and is very different from country to country. AECS can see the same happening here in NZ, although there is no legislation yet. Emission Testing NZ is lobbying the NZ government to try to implement testing limits and homologation rules.

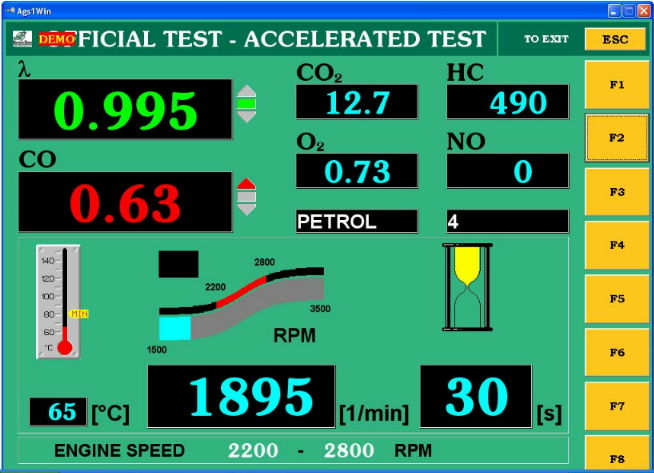

Legal emission test protocol
The AGS 200 tester can be switched into various measurement modes for continuous testing mode. This is to suit the preference of each individual owner, below are some examples:
Recording mode, the emission test can be recorded and saved over a period of time. great for diagnostics!
The emission tester can be switched to 'normal mode' so it takes on the look of any old emission tester.

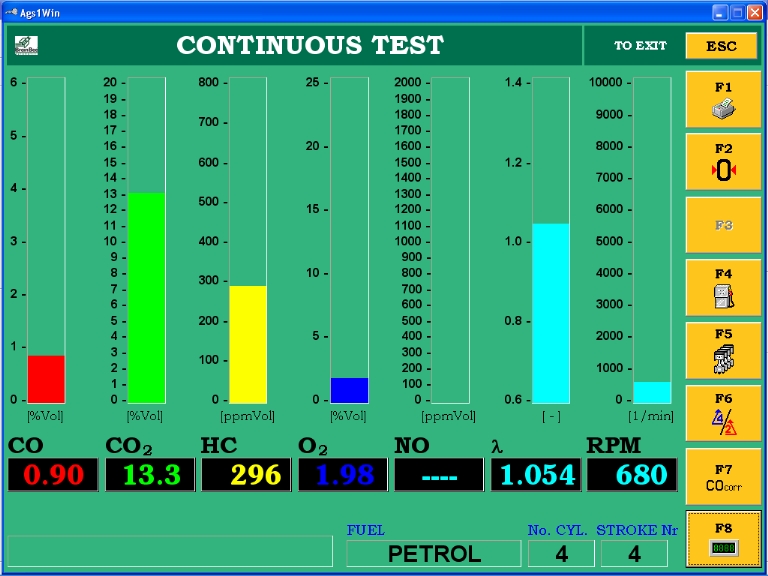

In bar graphing mode the emission tester is easy to use from greater distance

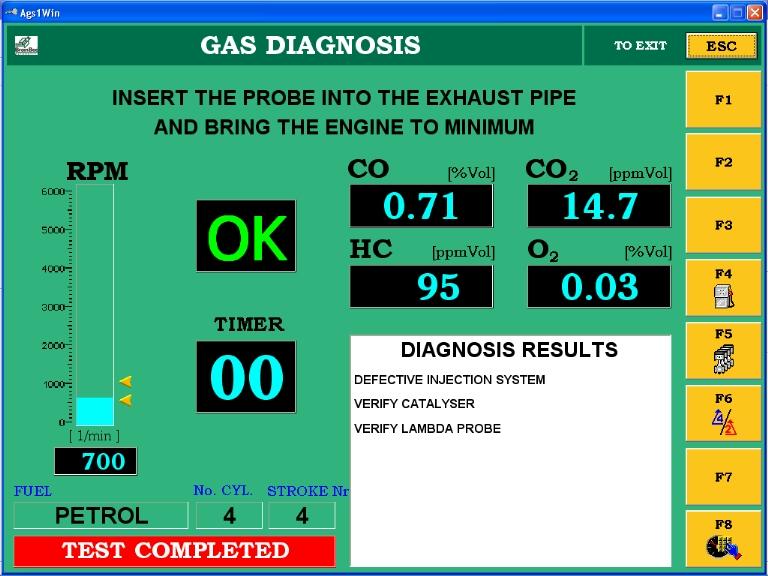

The AGS 200 can also be used in automatic diagnostic mode. Although this will not give hard evidence of where the problem is it can be of great help by pointing you in a direction you otherwise would not have thought of. Simply follow the instructions (i.e. engine speed and pauses) on screen and read the result.
The diagnostic results are an indication of where the problem might be.
The tester needs to be used with an oil temperature probe and an RPM pick up to get diagnostic results and to be allowed to perform legal tests.
A inductive clamp RPM pick-up can be connected around ignition leads or injector power supply wires and connected with an cable to the AGS 200 Unit. Also an oil temperature probe needs to be inseted into the dipstick tube and can be connected directly to the unit. The wires are cluttering and almost prohibitive. This is why Brainbee has standard build into the AGS 200 an arial which can receive the signals from a radio transmitter, the MGT300/R.
The MGT 300/R can universally be used by the AGS 200 Petrol emission tester and by the OPA 100 Diesel Opacity meter.
Brainbee emission tester set
