    03) Hook Up
      03.1) RPM pickup with Dispeed probe
      03.2) RPM pickup with trigger clamp
      03.3) RPM pickup through OBD connector
      03.4) Engine temperature sensing
      03.5) EOBD temperature sensing





    3) Hook Up

    Select what type of probes need to be used to connect to the vehicle, this is largely vehicle depending. Some of the generic probes can be used on any vehicle for all tests.

    Selction of availible probesSelection of some of the available probes

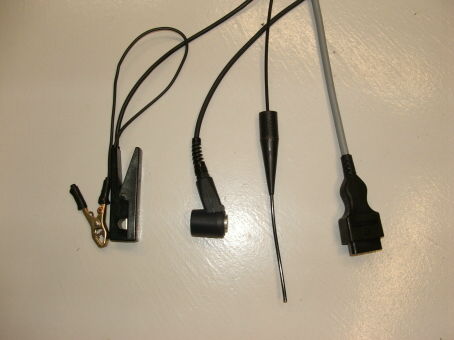

    Pictured are (from left to right) Inductive RPM pick-up, Magnetic RPM pick-up, Engine temperature sensor, OBD engine temperature and RPM sensor

    The tester will prompt for which probes to use, when a specific vehicle selection is made, or when a different setting is requested by the operator.

    Continued
