    AVL Discope 802

    Modern vehicle electronics are ever increasing in the automotive industry. The AVL dual channel oscilloscope is a true 50MHz scope (50MHz on both channels).
    This means that the scope is fast enough to read all electrical signals found on any vehicle, including high speed can data bus lines.
    It is a scope that will not be made obsolete in the near future due to rapidly changing electronic systems.
    The scope is ideal for people who have limited experience as it includes presets for all vehicle sensors and actuators.

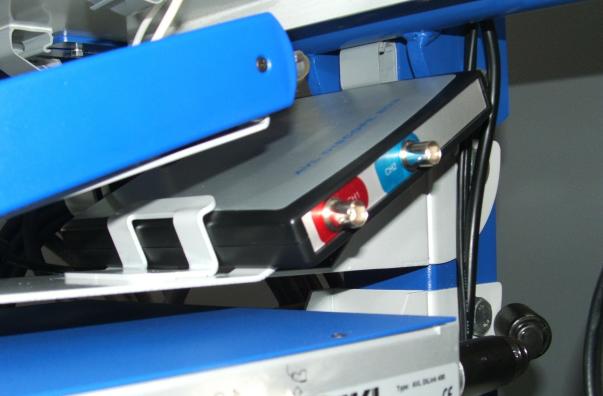

    DiScope 802 positioned in the DIX tower unit


    An oscilloscope is a priceless piece of diagnostic equipment. Its measurements are exact and it gives you a visual representation on the welfare of the respective electrical system you are measuring.

    AVL Discope 802 functions include:

    • Automatic presetting for all automobile tests (petrol, diesel, ABS, Data bus systems).
    • Very easy operation thanks to connection tips, available reference graphs and automatic graph analysis.
    • Very high sample rate (50 MHz per channel) high definition, real-time visualization of the signals.
    • Active reference graph creation and administration.
    • Recording feature for the recording and playing of dynamic signal waveforms with full functional range.
    • Signal wave form memory function.
    • Comprehensive range of delivery with all connection adapters.
    		Base Oscilloscope Unit
    The AVL Discope 802 can also be supplied in a mobile unit.
    This includes cables, probes, and current clamp.
    The mobile unit also comes with scope software which incorporates presets for various sensors/actuators
    and includes sample patterns.

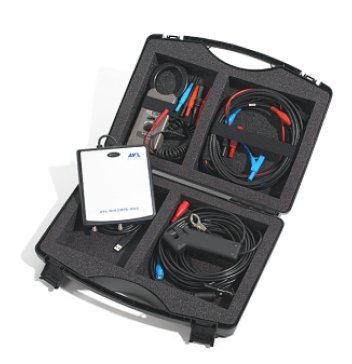

    DIOBD Mobile Oscilloscope (DIX 102)


    Examples of scope software presets

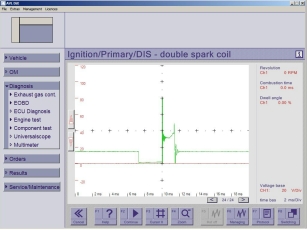

    Ignition Primary Signal

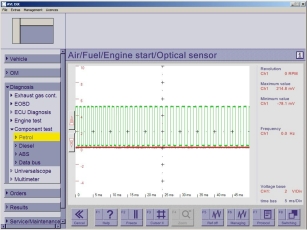

    Optical Sensor Signal

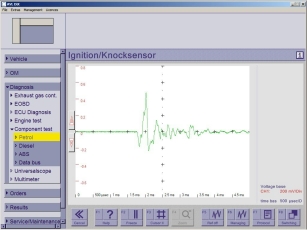

    Knock Sensor Signal
