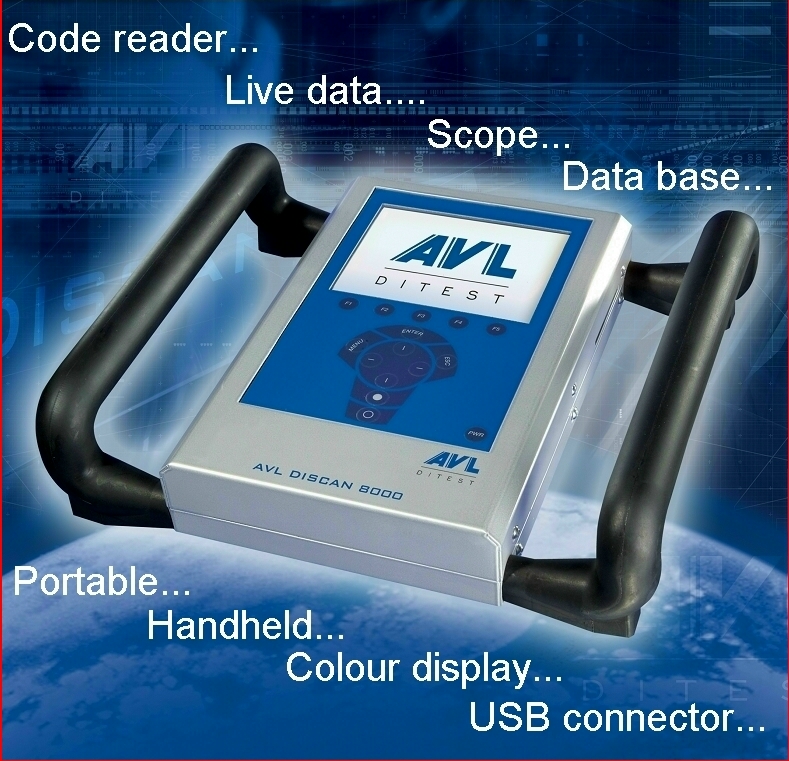

AVL DiSCAN 8000


One of the most elaborate tools on the market with a huge vehicle and system range:

Software features


• Passenger car range from Alfa Romeo to Volkswagen
• Motor cycle range from Aprilia to Yamaha
• Systems range: ABS, ASR, Airbag, Diesel management, Electrical suspension, Clutch, Transmission, Instrument panel, Air conditioning, Light setup, Engine management system, Park assistance, Radio/CD, Seat adjustment, Sun roof, Mirror, Adjustment traction control Cruising control, Service reset, Central lock, Anti theft, 4WD Electronics, Autom. Light Switch, Battery Charger, Battery Regulation, Brake Power Supp., Driver Foot Board, Driver Side Door, Electric Actuation, Emergency Call, Engine Management 2, Engine Management 3, Front Contr. Indic., Left Rear Door, LH Right Modulation, Park. Brake, Pass. Side Door, Pass.Foot Board, Passive Entry, Power Brake, Rear Control Indic., Light Modulation, Right Rear Door, Service Light Reset, Switch Panel, Tire Pressure, TV System, Voice Control
• Soon : Dedicated Truck software version available !!


To down load the Car and motor bike /system range file, just click here!

To down load the Truck /system range file, just click here!
you will be impressed.


Hardware features


• Serial comunication for live data, fault code detection, service interval resets, key programing, OBD, etc.
• A huge range of vehicle specific and OBD languages are supported.
• Portable, sturdy (3 Kg's) european quality.
• Colour VGA screen
• Conectable to printer(direct) or PC
• Interfaces: USB; serial; AVL Compact Flash, AVL Smart Card, Diagnostic connector, Osziloscope- and Multimeter, VGA connector
• Protocols: Vehicle specific protocols + EOBD/OBDII protocols: ISO 9141-2, KWP2000, SAE J1850 PWM and VPW CAN Bus protocol (according specifications)
• (optional) data base system
• (optional) onboard scope.
• Updates are via the internet


Pricing

Pricing for a basic set: (!!)**), which is ready to use.

Pricing for a full and VERY complete set: **) which includes:
• all available vehicle datalink connectors,
• scope (single channel high resolution colour screen, with recording and data hold),
• all available car and motor cycle brand software (yearly lease, 4 times per year an update via the internet),
• a connector cable for an external VGA computer screen.

**) pricing is exluding GST and exluding air- (+/-$350.00) or sea freight (+/-$200.00).

Diagnostician's note:

The AVL 8000 scan tool has a beautifull data-log function. In recording mode it will record as many 'life data' parameters as wanted. in play back you can move a 'ruler' over the recorded life data traces (almost like slow scope patterns for every data string) seeing instantly all values at that given moment.
The relation between all signals in a time frame can be analised, e.g. is the narrower injection pulse width a result of the oxygen sensor or a fluctuation of the airmass or temperature sensor.

Please DO download the vehicle and systems range, we have nothing to hide, in fact we are mighty proud of the enormous range of vehicles and systems that you will get with both the basic and full set.

It is really nice and easy to use!!

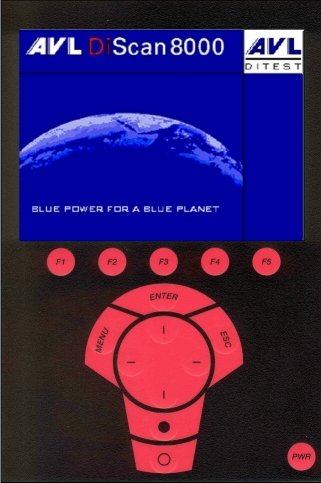

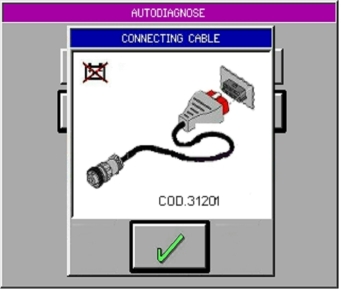

Front panel with colour VGA screen and red membrane buttons	Screen shot from colour VGA screen.
